Cellavsion DM Vet Analyzers

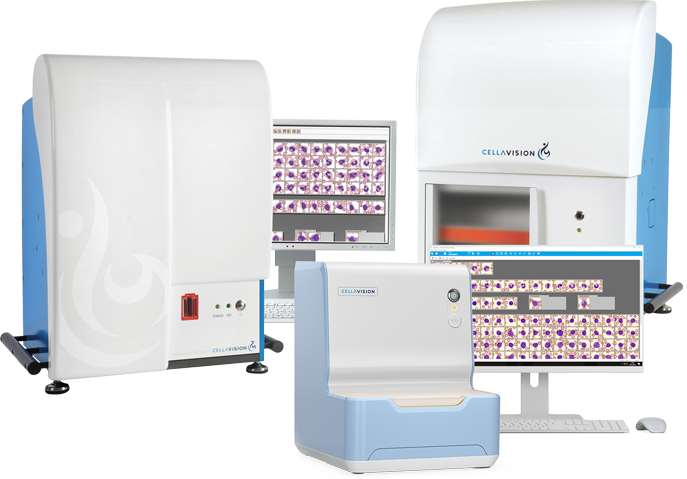

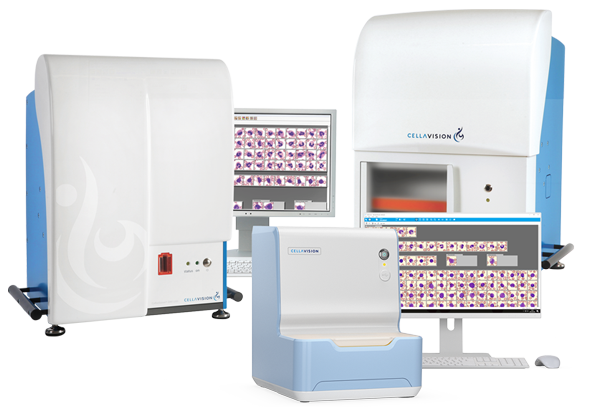

CellaVision® DM1200 Vet and DM 9600 Vet

Automate slide review in your lab with Digital Cell Morphology by CellaVision


CellaVision Vet provides you the greatest in digital image quality and efficiency to automate and standardize your manual review of veterinary and animal research slides. The CellaVision Vet analyzer is the engine of automated and digital workflow for cell morphology, enabling you to work smarter and perform better.

Automatic cell location and pre-classification improves resource utilization and the quality of results. Highly skilled staff are able to spend more time on difficult cases that require careful analysis and assessment.

The analyzers are developed to support analysis of multiple species:

  • WBC Differential – delivers comprehensive pre-classification into 12 cell types
  • RBC Review – identifies an optimized area of the slide to review morphological characteristics
  • PLT Estimate – presents multiple fields on the slide for platelet review
  • Feathered Edge Scan – presents an overview image of the smears feathered edge

Customers located in Canada: Product availability may be different from the U.S.. Please call Sales at 1-866-779-7639 for more information.

Collaborate with Ease

The user loads a stained slide into the magazine and places it on CellaVision DM1200 Vet or DM9600 Vet analyzer. The system scans and reads the slide barcode. CellaVision software finds the cell images and displays them digitally so laboratorians and researchers can view slides by computer monitor using convenient remote review software from any laboratory site. Innovative image analysis technology delivers a pre-classification of white blood cells and of red blood cell morphology for review and verification.
Efficiency
Reduce the time spent reviewing cells and morphology with automatic cell location and pre-classification,specific for multispecies analysis.
Standardization
Replace manual microscopy to aid the technologist’s review of cells at the same high level of consistency.
Collaboration
Easily capture and share cell images to enable consultation and collaboration.

State-of-the-Art Technology

CellaVision DM1200 Vet and CellaVision DM9600 Vet

Slide Handling
Requires barcode labelled slides with clipped/round corners
Storage Capacity
 On local hard drive up to 4,000 slides (20 GB)
Printer Support
 Laser/inkjet printers supported by Windows
Communications ASTM Host Query Bi-Directional Interface
TCP/IP or RS-232
E-mail
Electronic Specifications
 Voltage input:
100 to 240 VAC
Current input:
System computer: 1.4 to 0.7 A
Slide scanning unit: 0.6 to 0.3 A
Accessories (highly recommended) Label printer kit
HemaPrep

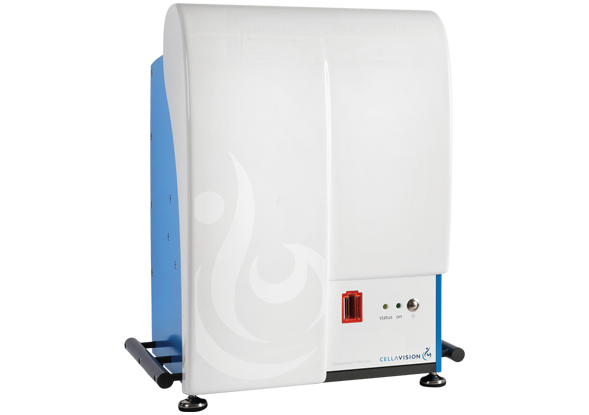

CellaVision DM1200 Vet

Size (W X D X H)
 22.7 × 19.3 × 28.0 inches
Weight 176 lbs
Throughput* Up to 18 slides/h (100 WBC+RBC+PLT+feathered edge)
​​ ​​

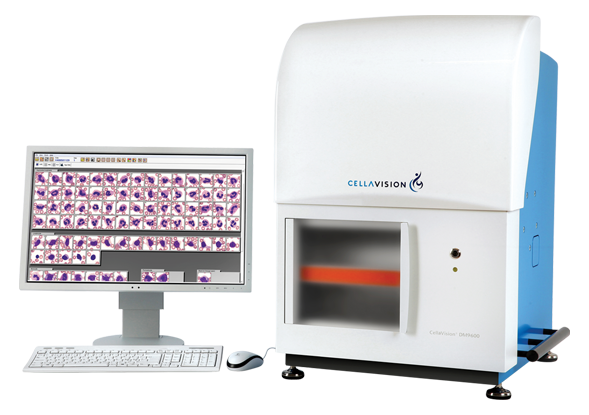

CellaVision DM9600 Vet

Size (W X D X H)
 22.8 x 22 x 31.1 inches
Weight 205 lbs
Throughput* 23 slides/h (100 WBC+RBC+PLT+feathered edge)
* Depending on WBC concentration, number of non-WBCs and the quality of the smear ​​

CellaVision Remote Review Software Vet

The CellaVision Remote Review Software gives users access to processed slides and makes it possible to review and verify cell differentials from anywhere, anytime.

Licence options
 Professional Edition: for 1 user
Team Edition: for up to 5 concurrent users
Group Edition: for up to 25 concurrent users
Enterprise Edition: for up to 75 concurrent users
​​

CellaVision Server Software Vet

The CellaVision Server Software allows analyzers across multiple sites to store data in one centralized database.

Server specifications
 Windows Server 2012, Windows Server 2008 R2 (64 bit
Virtual or physical server supported (customer to provide)
Disk space: 200 GB/database
​​

CellaVision Dashboard

The CellaVision Dashboard provides a visual overview of key metrics on the CellaVision analyzers.

Key performance indicators
 Workflow input and output
Sample turnaround time
Processing time per analyzer
Review time per reviewer
QC procedure control
Specifications
 Operating systems: Win 7 / Win 8 / Win 10
2 GB RAM
Screen Resolution 1920x1080
​​

CellaVision Proficiency Software

The CellaVision Proficiency Software is a web-based tool designed to help laboratory managers assess, monitor and promote staff competency in the area of cell morphology.

Recommended pc specifications
Operating systems: Win 7 / Win 8 / Win 10
Browser: Internet Explorer
2 GB RAM
8 Mbps bandwidth
Screen resolution 1920x1080
​How it works
Collaborate with Ease The user loads a stained slide into the magazine and places it on CellaVision ® DM1200 Vet or DM9600 Vet analyzer. The system scans and reads the slide barcode. CellaVision software finds the cell images and displays them digitally so laboratorians and researchers can view slides by computer monitor using convenient remote review software from any laboratory site. Innovative image analysis technology delivers a pre-classification of white blood cells and of red blood cell morphology for review and verification.
